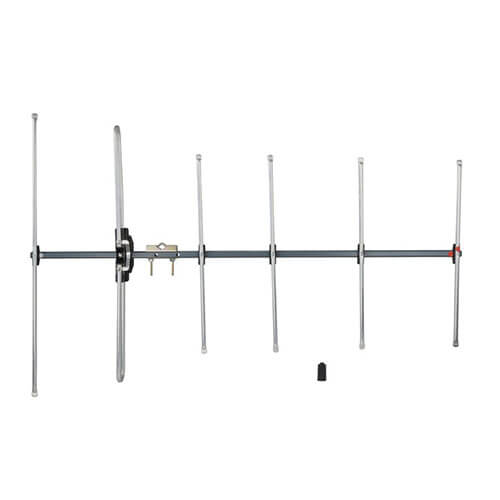

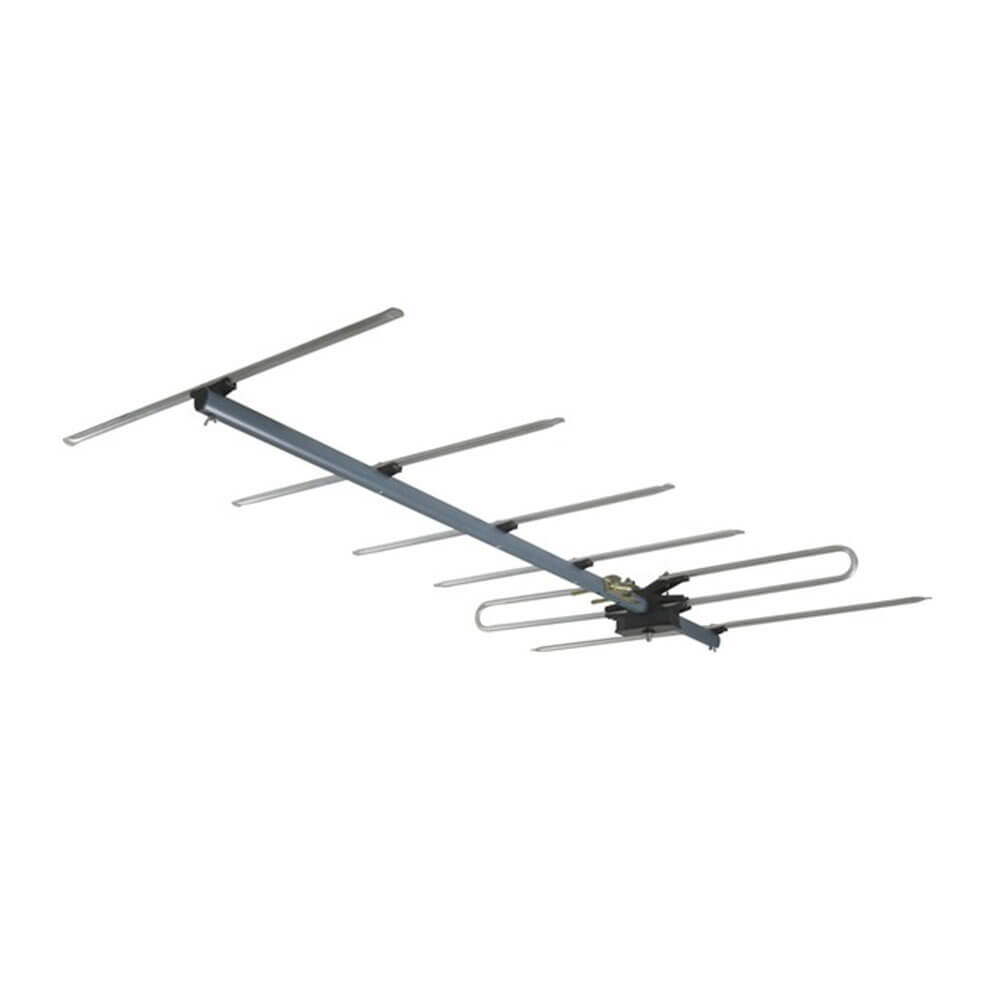

Yagi 6 Element VHF Digital TV Antenna

With the major cities in Australia now receiving their Digital TV reception on Band 3, the Kingray range of yagi antennas provide the perfect solution for metropolitan and some country areas. The antennas are almost completely assembled out of the box, with only the reflector and director having to be attached to the boom. The heavy duty 12mm elements, stainless steel screws on the driven element connection points, powder coated boom and UV stabilised plastics will ensure many years of trouble free reception. They are also suitable for DAB+ reception.

Specifications:

• Element: 6
• Band: 3
• Channels: 6-12
• Frequency: 174-230MHz
• Gain: 10.5dB
• F/B Ratio: 16dB
• Overall Length: 1275mm
• Maximum Width: 835mm

Product Specifications

• Mounting Method : Pole Mount
• Attachment / Securing Method : U-Bolt
• Antenna Type : Yagi
• Usage Location : Outdoor
• Number of elements : 6.0pc
• Reception Bands : TV Band 3: 174-230MHz
• UHF Frequency Range : 230.0MHz
• VHF Frequency Range : 174.0MHz, 230.0MHz
• VHF Channels Covered : 6.0ch
• VHF Gain : 10.5dB
• Boom Length : 1.275m
• Antenna Assembly : Bolt Together

• Length : 129 cm
• Width : 17 cm
• Height : 13.5 cm
