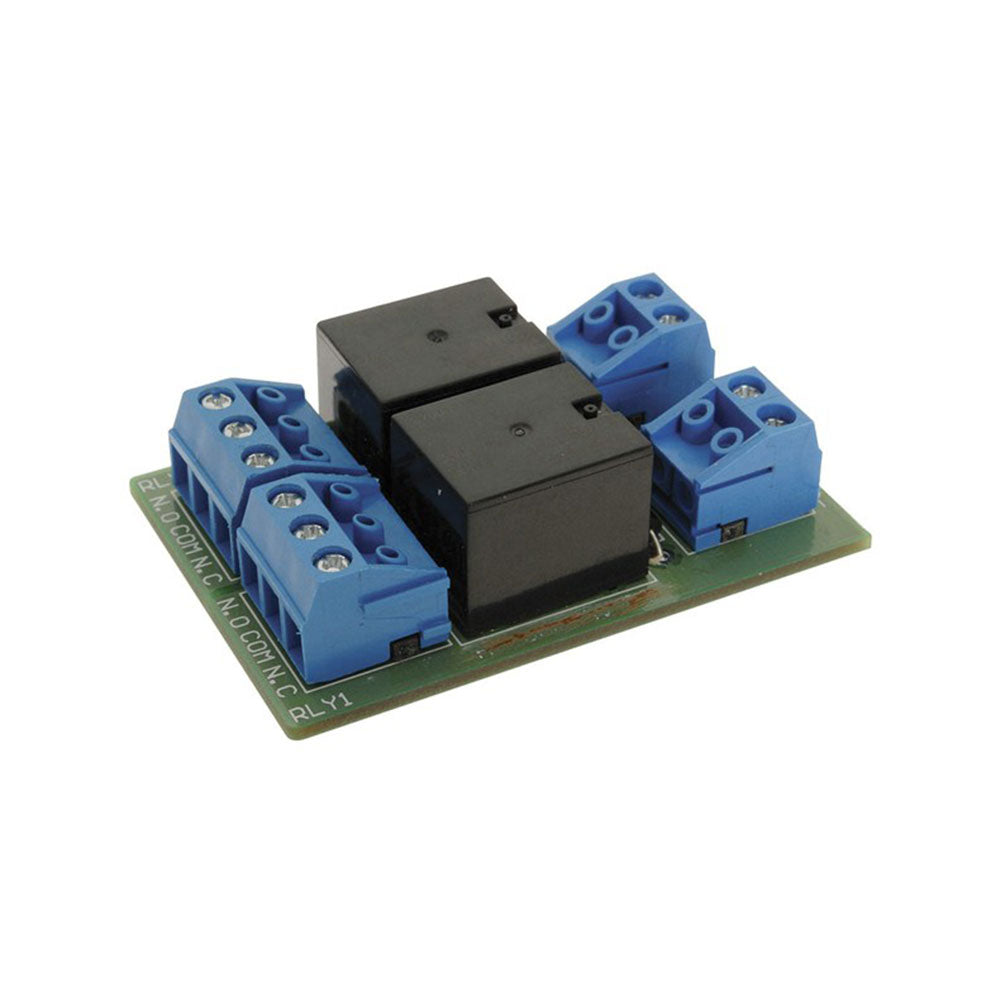

Alarm Relay Module 2x15A

When it comes to large alarm installations, there is often a requirement to have several sirens and strobe lights. In order to do this safely, the best way is to use an isolated relay module. This enables you to supply an external power source so as not to overload the power supply on the alarm panel and switch high currents to multiple sirens and strobe lights.

Product Specifications

• 12VDC Coil
• 15A Switching current at 12VDC (10A at 24VDC)
• Easy connection via wire terminals
• NO and NC contacts
• Isolated to protect the alarm panel
• Relay coil protection for spike free operation

• Length : 6.5 cm
• Width : 4.5 cm
• Height : 2.3 cm
